Operating Frequency:10 MHz
Switching Speed:5 ns
Max Collector Current:1 A
Supply Voltage Range:10V to 30V
Temperature Range:-40°C to +125°C
Package Type:TO-220
Mounting Type:Panel Mount
Number of Channels:1
Control Logic:Positive or Negative Logic
Switching Voltage:15V

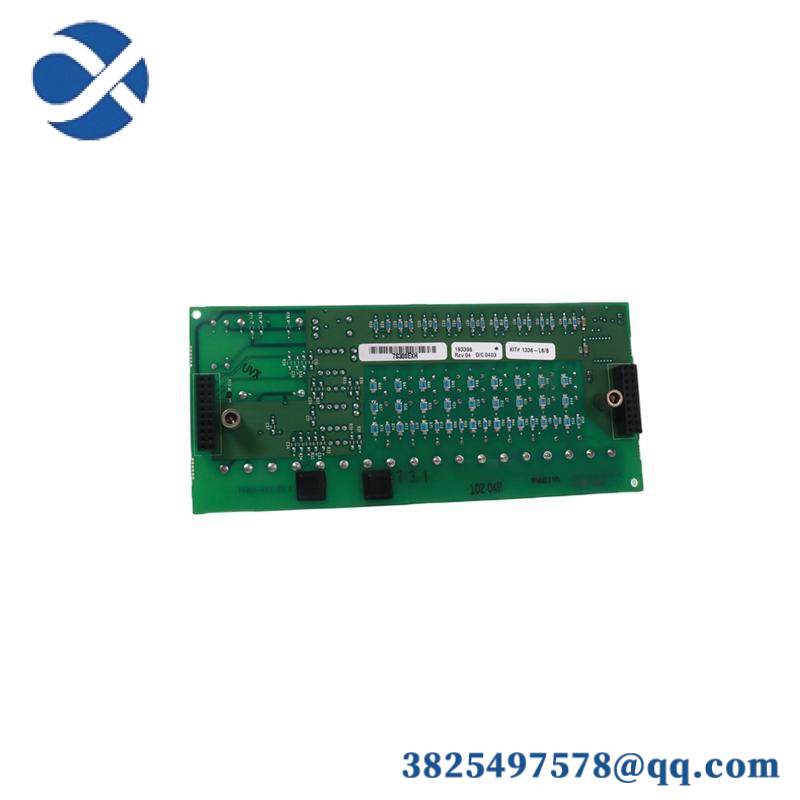

The AB Electronics 1336-QOUT-SP13A Transistor Module is engineered for demanding industrial applications requiring robust power switching capabilities. With its compact size and high-power capacity, it’s ideal for use in machinery, automation systems, and other equipment where reliability is paramount.
Featuring a wide operating voltage range from 24VDC to 120VDC, this module is adaptable to various power sources and can handle a power rating of up to 500W, ensuring efficient energy transfer and minimal heat dissipation.
The device is designed to withstand extreme temperatures ranging from -40°C to +85°C, making it suitable for harsh environments typically found in manufacturing plants, outdoor installations, and extreme condition settings.
With an insulation resistance of ≥10MΩ at 500VDC, this module ensures reliable electrical isolation, safeguarding against short circuits and enhancing overall system safety.
Compliant with RoHS standards, the AB Electronics 1336-QOUT-SP13A Transistor Module adheres to environmental regulations, promoting sustainable manufacturing practices and reducing hazardous materials exposure.
For optimal performance, we recommend proper installation and maintenance procedures to maximize the lifespan and reliability of this component.
