Model Type:Digital Contact Output Module
Product ID:1746-OW16
Manufacturer:Allen-Bradley
Module Type:Discrete Output
Outputs:16
Operating Voltage:5-265 Volt AC or 5-125 Volts DC
No. of groups:2
Output Types:N.O. Relay Contact
Input Voltage:Not applicable
Output Frequency:Not applicable
Backplane current consumption:0.270 A
Voltage Range:10-50 Volts DC
Sink Outputs:16
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% relative humidity non-condensing
Enclosure:Open Type
Mounting:Chassis
Current Rating:Backplane: 0.28 A, Continuous Current Per Output: 0.25 A At 60 DEG C, Continuous Current Per Module: 4 A At 60 DEG C
On-State Voltage Drop:Not specified
Off-State Output Leakage:1 MA
Load:1 MA

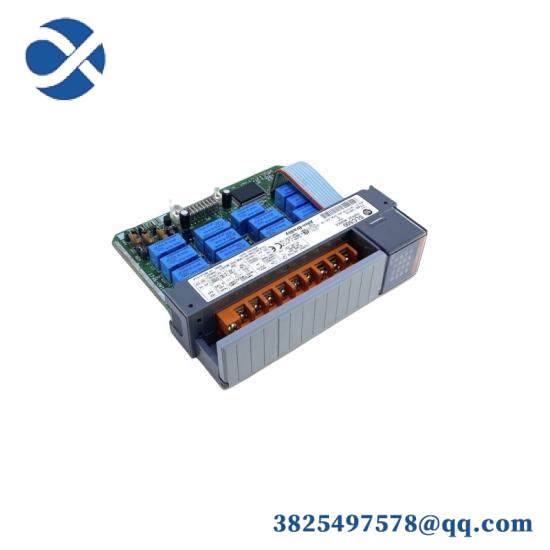

The Allen Bradley 1746-OW16 Digital Contact Output Module is a high-performance component tailored for seamless integration into industrial automation systems. It features 16 discrete digital contact outputs, each equipped with an N.O. Relay Contact, enabling precise control over electrical circuits.
Designed for versatility, this module supports a wide range of operating voltages, including 5-265 Volt AC and 5-125 Volts DC, ensuring compatibility with diverse industrial applications. Its robust isolation capabilities further enhance reliability by preventing interference between communication circuits and backplanes.
With a current rating of 0.28 A for the backplane and 0.25 A per output at 60°C, the Allen Bradley 1746-OW16 ensures stable performance under varying conditions. The open type enclosure and chassis mounting options provide flexibility for installation in various environments, while its temperature rating from 0°C to 60°C supports operations across different climate conditions.
In addition, the Allen Bradley 1746-OW16 complies with stringent environmental conditions standards, ensuring it can function reliably in industrial settings with relative humidity ranging from 5% to 95% without condensation. This makes it an ideal choice for applications requiring long-term durability and performance.
Experience the precision and reliability of Allen Bradley’s engineering with the 1746-OW16 Digital Contact Output Module. Whether you’re enhancing existing systems or building new ones, this module delivers exceptional value by providing robust control capabilities, enhanced isolation, and adaptability to meet the demands of modern industrial automation.
