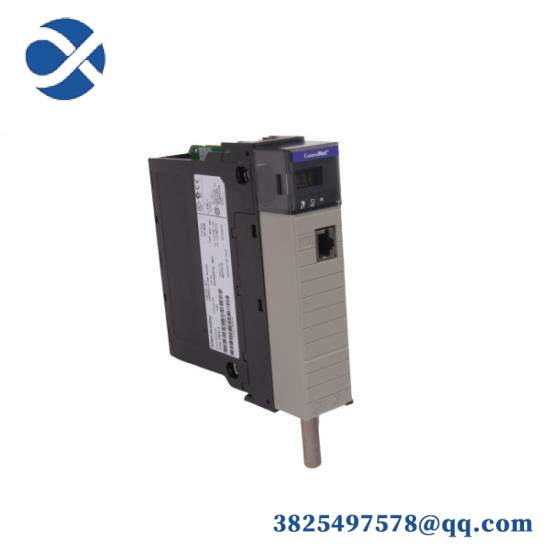

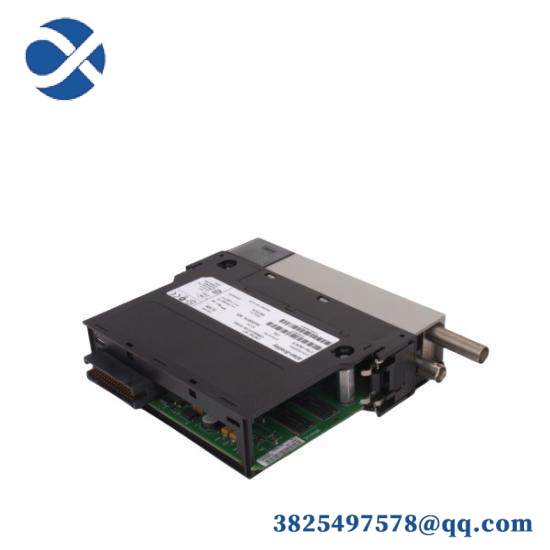

AB 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Model Number:1756-CN2R/B

Manufacturer:Allen-Bradley

Number of Channels:2

Current Rating (Drawn):970 MA at 5.1 VDC, 1.7 MA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Communication Protocols:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHZ, etc.

Temperature Rating:32 – 140 DEG F

Amperage Rating (Drawn):400 MA at 5.1 V

    The 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module is a high-performance component designed for industrial control systems, ensuring unparalleled reliability and efficiency. It features dual redundant connections to the ControlNet network, providing fail-safe operation even in critical applications.

    Built with state-of-the-art technology, this module is compatible with Allen-Bradley’s ControlLogix series of PLCs, allowing for seamless integration within existing control systems. Its compact size and robust design make it suitable for both new installations and upgrades in existing facilities.

    With support for various environmental conditions, the 1756-CN2R/B is designed to withstand harsh industrial environments without compromising performance or reliability. Its durable construction ensures longevity and minimal maintenance requirements, making it an ideal choice for manufacturing plants, process control, and automation projects.

    The module supports advanced communication protocols, including ControlNet, which facilitates efficient data exchange between devices on the network. This feature is crucial for real-time monitoring and control, enhancing overall system performance and responsiveness.

    Offered by leading manufacturers such as AB (Allen-Bradley), the 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module comes with industry-standard certifications, ensuring compliance with global safety and quality standards. Its inclusion in industrial control systems can significantly reduce downtime and improve operational efficiency.
