Brand:AB
Model Number:1761-L32AWA
Controller Type:MicroLogix PLC
Input Channels:32 Digital Inputs
Output Channels:24 Digital Outputs
Power Supply:24 VDC
Interface:RS-232/RS-485, Ethernet/IP
Dimensions:180 mm x 90 mm x 87 mm
Temperature Range:-20°C to 60°C
Humidity Range:5% to 95% non-condensing
Vibration Rating:3 G at 10 Hz to 500 Hz
Shock Rating (Operating):30 G
Shock Rating (Non-operating):Panel Mount 50 G, DIN Mount 40 G

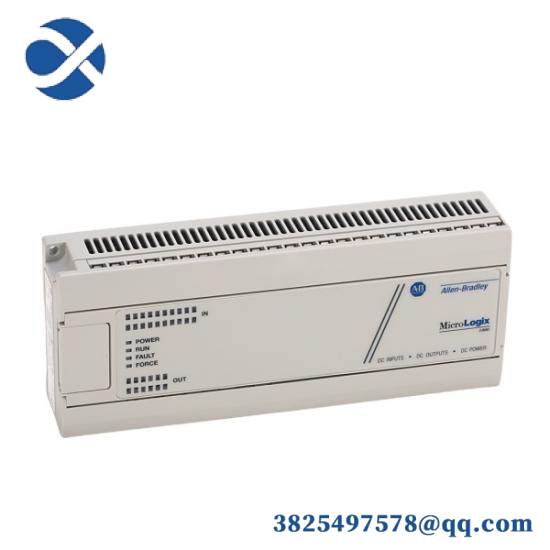

The Allen-Bradley 1761-L32AWA MicroLogix controller is a versatile and reliable solution for small-scale automation projects. It combines a robust design with advanced features to ensure seamless operation across various industrial settings.
This controller comes equipped with 12 fast 24 VDC input channels and 8 normal 24 VDC input channels, providing extensive connectivity options. Additionally, it has 6 relay output channels, 3 fast DC output channels, and 3 normal DC output channels, catering to diverse application requirements.
With a compact form factor of 180 MM in length, 90 MM in width, and 87 MM in height, the 1761-L32AWA controller can easily fit into tight spaces without compromising on functionality. It supports mounting options such as DIN rail or panel mounting.
Equipped with communication interfaces like RS-232/RS-485 and Ethernet/IP, this controller ensures efficient data transfer and network integration. Its wide temperature range from -20°C to 60°C makes it suitable for harsh environmental conditions.
Designed to withstand vibrations up to 3 G at frequencies between 10 Hz to 500 Hz and shocks up to 30 G during operation, the 1761-L32AWA controller is built to last in demanding industrial environments.
