Operating Voltage:24V DC
Rated Current:10A
Protection Class:IP20
Operating Temperature Range:-25°C to +60°C
Relay Type:Solid State
Switching Capacity:Up to 250V AC/3A
Mounting Method:Panel Mount
Input Delay Time:Adjustable, typically 0.1s to 1s
Response Time:Less than 1ms
Protection Characteristics:Thermal overload, short-circuit, and phase loss

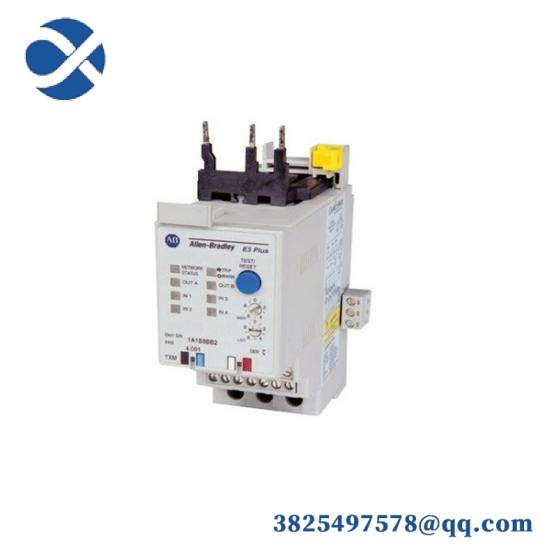

The AB 193-EC2DD Solid State Overload Relay is engineered for precision and reliability in heavy-duty industrial applications, ensuring efficient and dependable protection against overloads and short circuits. This state-of-the-art relay boasts an impressive nominal current rating of 24 A, providing robust protection across a wide range of equipment.
Featuring advanced semiconductor technology, it delivers precise current control and superior switching capabilities, making it ideal for applications requiring high levels of accuracy and performance. The relay’s operating voltage of AC 240 V allows for compatibility with a broad spectrum of industrial systems, ensuring seamless integration into existing setups.
With a switching capacity of up to 40 A, this relay is capable of handling substantial electrical loads without compromising on protection. Its overload and short-circuit protection types ensure comprehensive coverage, safeguarding sensitive machinery and processes from potential damage caused by excessive currents.
Engineered for longevity and reliability, the AB 193-EC2DD operates within an ambient temperature range of -20°C to +60°C, ensuring stable performance even under extreme conditions. It maintains insulation voltage of 250 VAC and operates effectively in humidity levels between 5% and 95%, non-condensing, guaranteeing durability in diverse environments.
For ease of installation and maintenance, the relay is designed for panel-mounted applications, allowing for quick setup and easy access for servicing. Its compact size and modular design facilitate integration into various control panels, optimizing space utilization and enhancing system efficiency.
