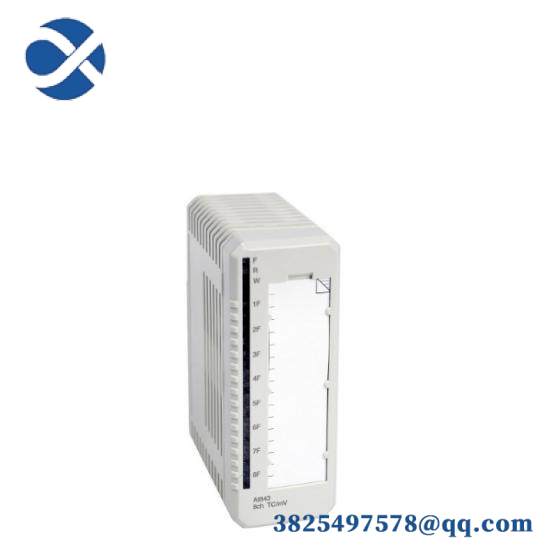

ABB AI843 3BSE028925R1 – Advanced Analog Input Module

Operating Voltage:24 VDC

Input Range:-10V to +10V

Resolution:12-bit

Sampling Rate:up to 50 kHz

Number of Channels:1

Environmental Conditions:Operating Temperature: -25°C to +70°C, Storage Temperature: -40°C to +85°C

    This ABB AI843 3BSE028925R1 Analog Input Module is engineered for high accuracy and reliability in industrial control applications. It seamlessly integrates with ABB‘s advanced automation platforms, offering superior signal conditioning and conversion capabilities.

    Key features include a wide input range suitable for various industrial signals, ensuring compatibility across different process environments. The module supports a high-resolution 12-bit ADC, providing precise measurement results.

    With a sampling rate of up to 50 kHz, this module is capable of capturing rapid changes in signals, making it ideal for dynamic process control scenarios. The compact design ensures minimal footprint on the control panel, facilitating efficient space management.

    The robust construction withstands harsh industrial conditions, withstanding temperatures ranging from -25°C to +70°C during operation and -40°C to +85°C for storage. This ensures reliable operation throughout its lifecycle in diverse industrial settings.

    Installation and configuration are straightforward, thanks to ABB‘s user-friendly software tools. Comprehensive documentation and support resources are available online, enabling quick setup and optimization for specific application requirements.
