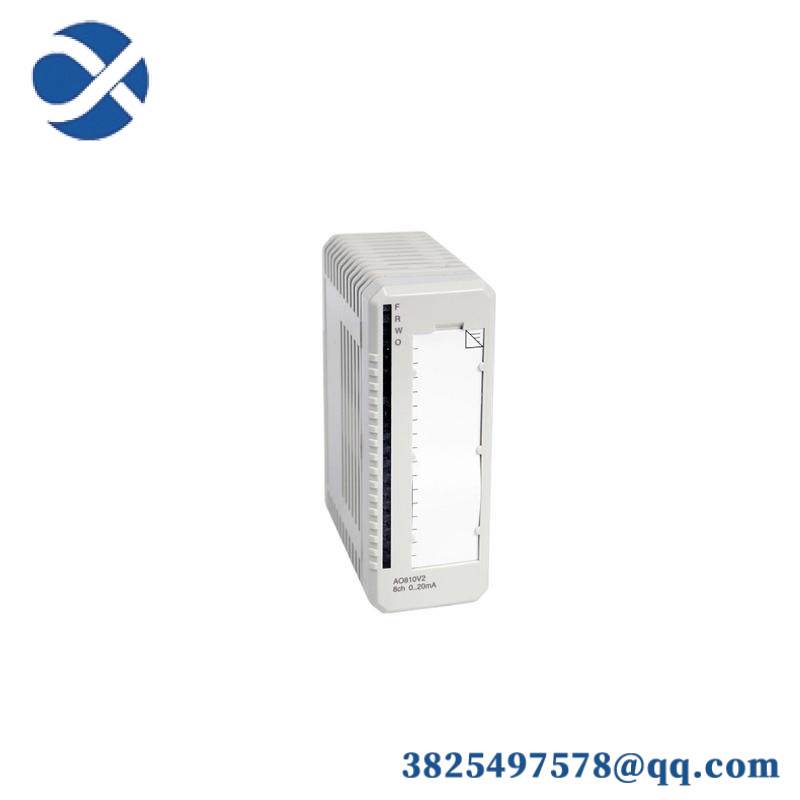

ABB AO810V2 Analog Output Module – 3BSE038415R1, Industrial Control Solutions

Product Type:Analog Output Module

Model Number:AO810V2 3BSE038415R1

Brand:ABB

Operating Voltage Range:12 to 24V DC

Output Current:10mA or 20mA

Supply Current:≤20mA

Output Power:≤2.5W

Response Time:≤5ms

Load Resistance:≤200Ω

Accuracy:+/-1% full scale

Environmental Conditions:Operating Temperature: -25°C to +60°C, Storage Temperature: -40°C to +85°C

Dimensions:102mm x 100mm x 43mm

Weight:Approximately 0.2kg

Connectors:1x Analog Output Connector

Protocol Compatibility:MODBUS RTU

    Introducing the ABB AO810V2 Analog Output Module, model 3BSE038415R1, a critical component for achieving optimal performance in industrial automation applications. This precision-engineered module is specifically designed to deliver accurate control signals with exceptional reliability and efficiency, making it an indispensable tool for engineers and technicians seeking superior control solutions.

    Featuring a robust 24V DC operation, this module supports both 0-20mA and 4-20mA current output ranges, ensuring compatibility with a wide array of sensors and actuators commonly found in industrial environments. With an accuracy rating of +/- 0.5%, you can trust that your control signals will be transmitted with unparalleled precision.

    Engineered to withstand challenging conditions, the AO810V2 Analog Output Module operates within a temperature range of -25°C to +85°C, with storage capabilities extending from -40°C to +85°C. This broad temperature tolerance ensures reliable performance across various industrial settings, whether it’s in harsh factory floors or in more controlled laboratory environments.

    The module is equipped with a load capacity of up to 300Ω for a 20mA output, allowing for effective handling of a variety of loads without compromising on signal integrity. Additionally, it supports popular communication protocols such as Modbus RTU and DeviceNet, facilitating seamless integration into existing automation systems and enhancing interoperability with other components.

    Compact yet powerful, the AO810V2 Analog Output Module measures 14mm x 14mm x 9mm, offering a compact design that does not compromise on functionality. Its size makes it ideal for space-constrained applications, where every inch counts, without sacrificing performance or reliability.
