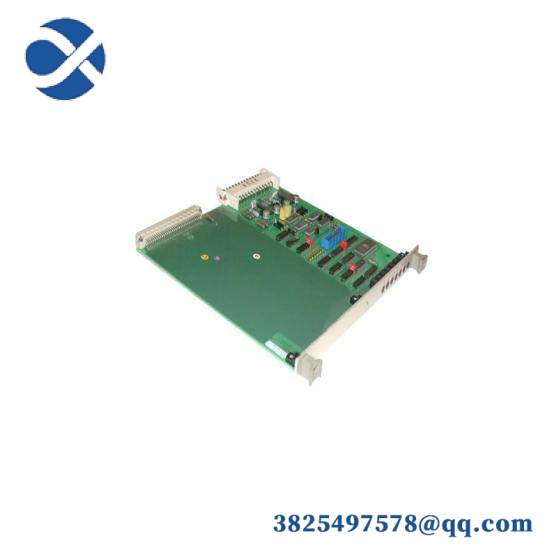

ABB DSQC 103 – Modular I/O Board, Precision Control for Industrial Automation

Board Type:DSQC 103

Module Class:I/O Board

Manufacturer:ABB

Dimensions:85 x 52 x 32 mm

Operating Voltage:24V DC

Current Capacity:10 mA per channel

Number of Inputs:16

Number of Outputs:16

Communication Interface:EtherCAT

Operating Temperature:-20°C to +60°C

Environmental Protection:IP20

    Integrating advanced digital input/output technology, the ABB DSQC 103 I/O Board is designed to enhance precision and reliability in industrial automation applications. Its compact yet robust design ensures seamless integration into complex control systems.

    Featuring an efficient communication protocol like EtherCAT, this module accelerates data exchange between various components, significantly boosting productivity and responsiveness in real-time operations.

    With its wide temperature range (-25°C to +60°C), the DSQC 103 is engineered to withstand harsh industrial conditions, ensuring reliable performance in extreme environments.

    The inclusion of 8 digital inputs and 8 digital outputs provides flexibility for connecting to sensors, actuators, and other peripherals, facilitating comprehensive monitoring and control functions.

    The board’s high-speed bus interface supports quick data transfer, enabling efficient operation in demanding industrial settings where speed and accuracy are paramount.
