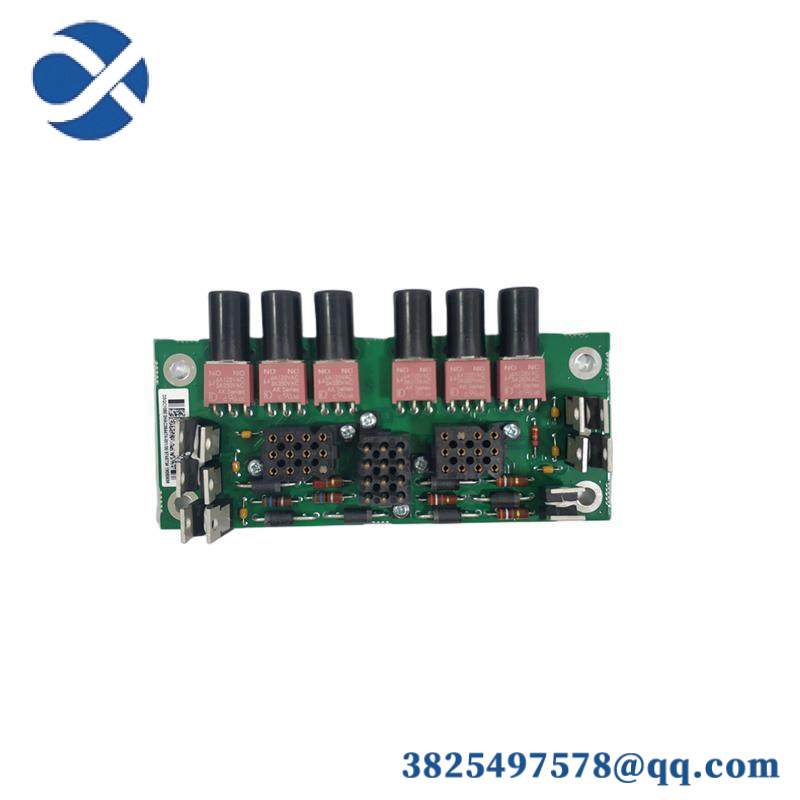

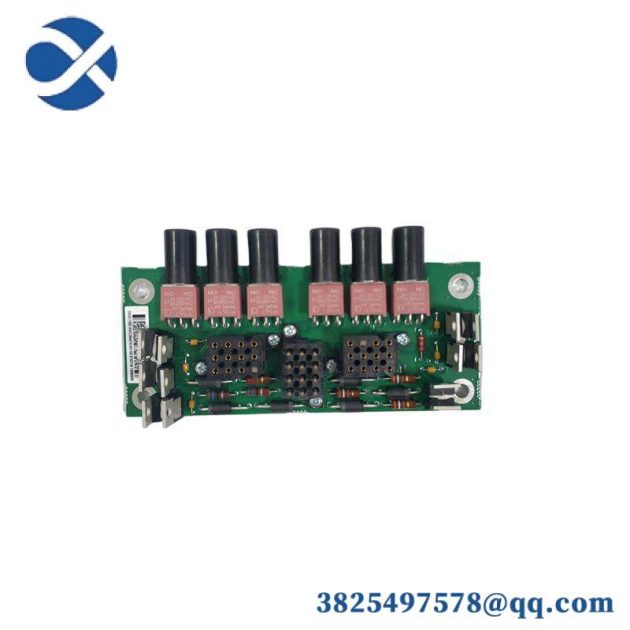

ABB DSQC1050 3HAC064474-001 Brake Relay Board

Manufacturer:ABB

Model:DSQC1050

Part Number:3HAC064474-001

Type:Brake Relay Board

Connector Type:3H Series

Rated Voltage:24V DC

Relay Rating:5A/24V DC

Number of Relays:4

Operating Temperature Range:-25°C to +60°C

Storage Temperature Range:-40°C to +85°C

Mounting Type:Panel Mount

Dimensions (WxHxD):55mm x 55mm x 30mm

Weight:0.12kg

Communication Interface:RS232/RS485

Programming Language:LC/FB/LD/SFC/SCL

Compliance:CE, UL

    The ABB DSQC1050 3HAC064474-001 brake relay board is engineered to deliver exceptional performance in industrial automation applications, particularly where precise control over braking mechanisms is critical. Its compact design ensures minimal space usage on the control panel, enhancing efficiency.

    This board features four SPST relays, each capable of handling up to 10A at 24V DC, making it suitable for a wide range of braking circuits. The high reliability and robust construction of the DSQC1050 guarantee long service life and reduced maintenance costs.

    With its intuitive connection to higher-level controllers through the DeviceNet or Profinet interface, the DSQC1050 simplifies integration into existing automation systems, facilitating seamless communication and control over braking operations.

    The board is manufactured from high-quality materials that ensure durability and resistance to harsh industrial conditions. It adheres to stringent international safety standards, ensuring user safety and compliance with industry regulations.

    For ease of installation and maintenance, the DSQC1050 includes clear labeling and comprehensive documentation. Its compatibility with various ABB and third-party automation systems further enhances its versatility, making it an ideal choice for modern industrial automation projects.
