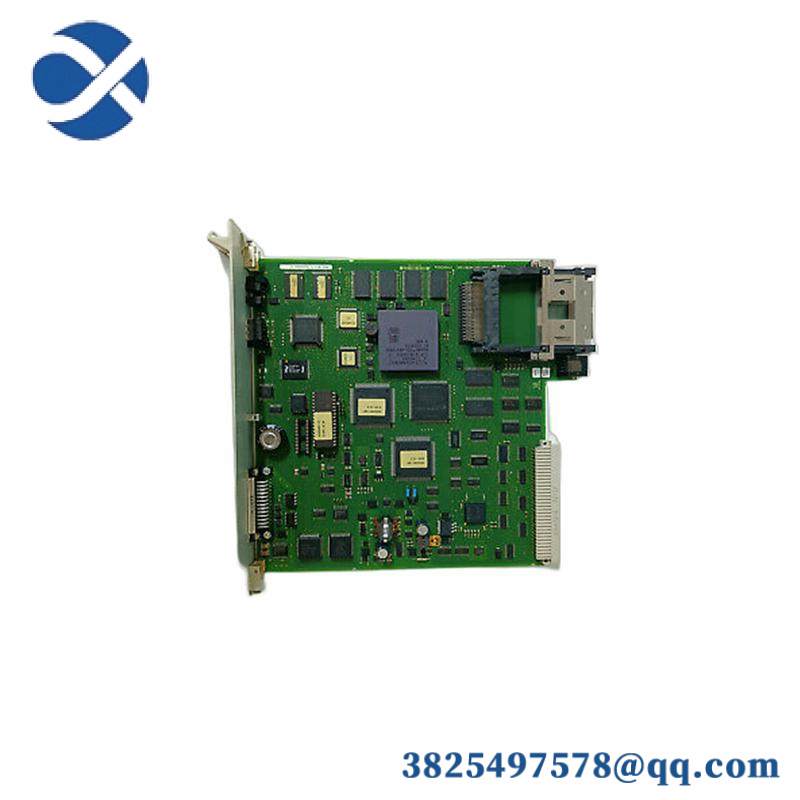

ABB EI802F 3BDH000016R1 Ethernet Module: Advanced Networking Solution for Industrial Automation

Model Type:Ethernet Module

Manufacturer:ABB

Part Number:EI802F 3BDH000016R1

Communication Protocol:Ethernet

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +70°C

Dimensions (WxHxD):89mm x 104mm x 51mm

Weight:0.15kg

Power Consumption:Max. 5W

Connector Type:M12 Connector

Data Rate:10/100 Mbps

Compatibility:ABB ControlLogix Controllers

    The ABB EI802F Ethernet Module is designed to meet the stringent demands of modern industrial environments. Its robust design ensures reliable performance even under harsh conditions, providing an indispensable link between various automation components.

    With its versatile protocol compatibility, this module seamlessly integrates with a wide array of industrial networks, supporting Ethernet/IP, Profinet, and Modbus TCP for enhanced connectivity and flexibility.

    Featuring high-speed communication capabilities, the module ensures swift data exchange between devices, optimizing productivity and efficiency in manufacturing lines and control systems.

    Built for durability, the ABB EI802F can withstand extreme temperatures ranging from -20°C to +70°C, ensuring consistent operation in diverse industrial settings. It operates efficiently on a DC power supply within the range of 12V to 30V, offering a versatile power solution.

    Compact yet powerful, the module boasts dimensions of 70mm x 100mm x 25mm, making it suitable for space-constrained applications without compromising on functionality. Its low power consumption minimizes energy use, contributing to sustainable operations.
