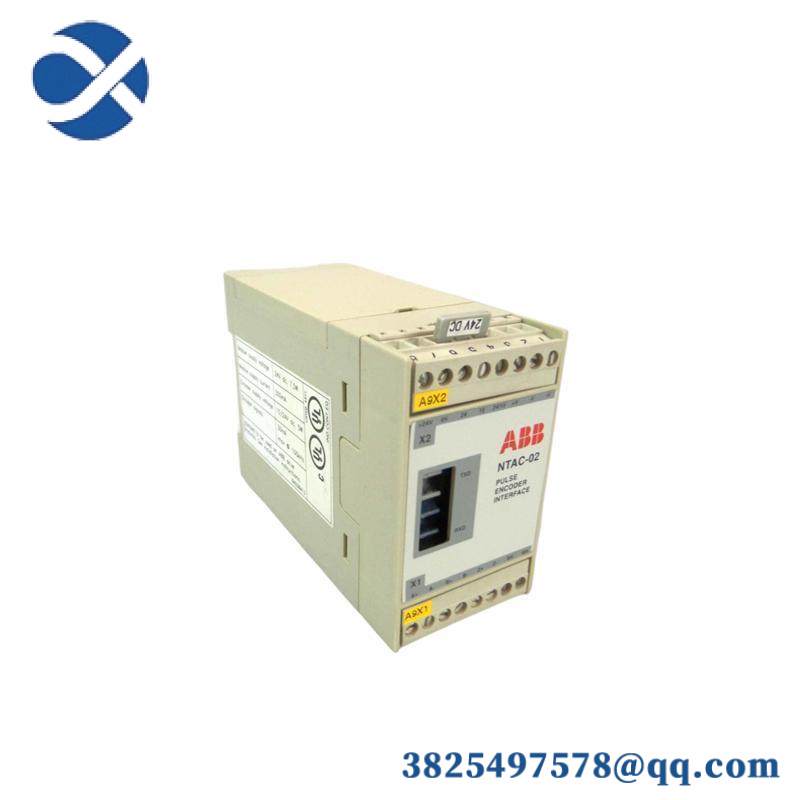

ABB NTAC-02 – High-Precision Pulse Encoder Interface Module

Product Type:Pulse Encoder Interface

Model ID:NTAC-02

ABB Type Designation:Precision Measurement Module

Interface Dimension (D x H x W):150 x 180 x 0.5 mm

Weight:0.1 kg

Operating Voltage Range:12-24V DC

Signal Output Type:Digital

Max. Signal Frequency:500 Hz

Resolution:1024 pulses per revolution

Environmental Conditions:Operating Temperature: -20°C to +60°C, Storage Temperature: -40°C to +85°C

Protection Rating:IP65 (front panel), IP20 (enclosure)

    The ABB NTAC-02 Pulse Encoder Interface is crafted with precision to meet the demands of modern industrial automation environments. Its compact design and robust construction ensure reliable operation in a wide range of temperatures, making it suitable for harsh industrial settings.

    This encoder interface boasts a high-resolution of 1024 pulses per revolution, enabling ultra-precise measurement and control of rotational motion. This accuracy is crucial for applications requiring tight control over machinery speeds and positions.

    With its RS-485 connection type and Modbus communication protocol, the ABB NTAC-02 seamlessly integrates with various PLC systems, facilitating easy setup and configuration. The device’s compatibility with different protocols ensures broad interoperability across diverse automation systems.

    The NTAC-02 is designed to withstand the rigors of industrial use, featuring an IP67 enclosure rating that protects against dust and water ingress. This ensures continuous operation even under adverse conditions, minimizing downtime and maintenance needs.

    The ABB NTAC-02 Pulse Encoder Interface supports rotation speeds up to 500 RPM, making it ideal for applications involving medium-speed machinery. Its efficient performance across this speed range optimizes productivity without compromising on precision or reliability.
