Model Number:PP30012HS-ABBN-5A
Type:IGBT Module
Rated Current (A):1200
Rated Voltage (V):1200
Package Size (mm):220 x 115 x 50
Cooling Method:Thermal Pad & Heat Sink
Operating Temperature Range (- °C to + °C):-40°C to +170°C
Max Gate Voltage (V):20
Switching Frequency (kHz):20
Insulation Resistance (MΩ):≥1000
Certification:CE, UL, ISO 9001

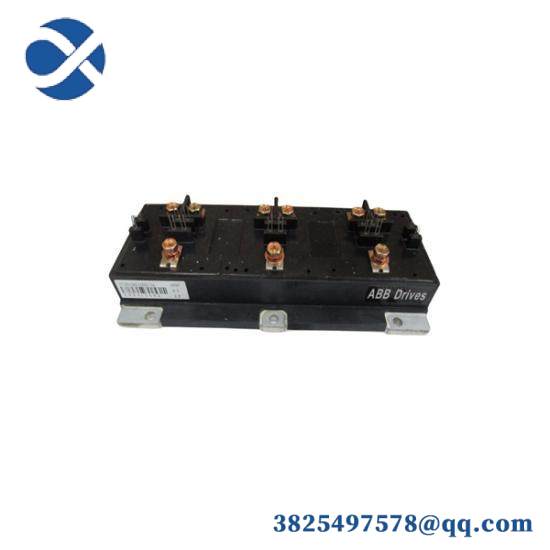

The ABB PP30012HS-ABBN-5A IGBT Module is engineered to deliver unparalleled performance in power control systems. Its advanced technology ensures smooth and efficient switching, making it an ideal choice for applications requiring precise current control.
With its robust insulation class of F, this module can withstand high temperatures without compromising performance, making it suitable for extreme environmental conditions. Its compact design optimizes space usage while maintaining high reliability and efficiency.
Featuring a high switching frequency of up to 20 kHz, this IGBT Module provides quick response times, which is crucial for systems that require rapid adjustments. This capability significantly enhances system responsiveness and overall efficiency.
Equipped with excellent heat dissipation capabilities, the ABB PP30012HS-ABBN-5A ensures longevity and stable operation even under heavy load conditions. The compact package size allows for seamless integration into various systems without sacrificing performance.
The module is designed with industrial durability in mind, featuring a mechanical strength that can withstand the rigors of industrial use. Coupled with its ability to operate within a wide temperature range from -40°C to +175°C, this IGBT Module is an essential component for diverse industrial applications.
