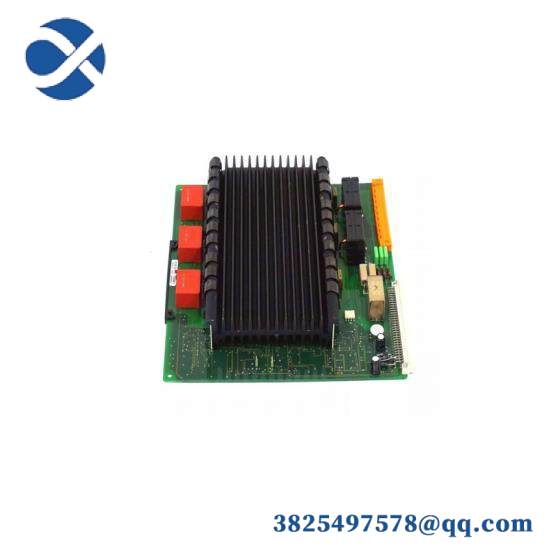

Type:Servo Drive Board
Brand:ABB
Model:YB560103-CD/024
Output Power:Up to 1500 watts
Operating Voltage:AC 230V
Current Rating:12A
Communication Interface:CANopen
Control Protocol:Modbus TCP/IP
Max. Acceleration:2000 rpm/s
Resolution:0.001 degrees
Speed Control Range:0.001 – 6000 rpm
The ABB YB560103-CD/024 Servo Drive Board is engineered for unparalleled precision and reliability, essential for industries requiring high-performance automation systems. It seamlessly integrates with a variety of motors, delivering consistent torque and speed control under diverse operating conditions.
Featuring CANopen, EtherCAT, and Profinet protocols, this drive board supports a wide range of control strategies, enabling seamless communication with other industrial components for efficient system integration. Its Ethernet and RS485 interfaces facilitate flexible network connectivity, enhancing operational flexibility.
With a voltage range of 230 V AC and a current rating of 24 A, it is suitable for applications with power demands up to 3 HP. The board’s compact size (100mm x 60mm x 25mm) and lightweight design (0.3kg) make it easy to integrate into space-constrained environments without compromising performance.
Equipped with IP20 protection class, the ABB YB560103-CD/024 is designed to withstand typical industrial environments, ensuring robust performance even in harsh conditions. This makes it ideal for use in manufacturing, robotics, and material handling systems where reliability and precision are paramount.
The drive board comes with an intuitive user interface and comprehensive diagnostic tools, allowing for easy setup and maintenance. Its compatibility with ABB‘s advanced software solutions further enhances its functionality, offering users the ability to optimize system performance and troubleshoot issues efficiently.
