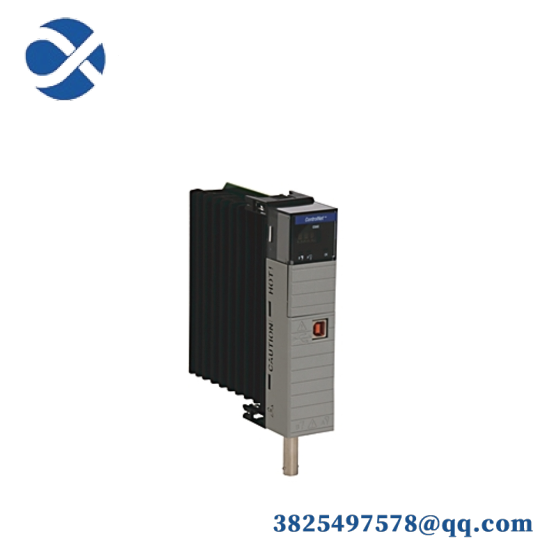

Advanced 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module – Enhancing Industrial Network Reliability

Manufacturer:Allen-Bradley

Model Number:1756-CN2R/C

Module Type:ControlNet Redundant Bridge

Channels:Redundant

Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Connection:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80 – 2000 MHz, Conducted: 10 VRMS with 1 KHz sine-wave 80% AM from 150 kHz – 80 MHz

Temperature Range:0 – 60°C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% non-condensing relative humidity, Vibration: 2 G, Shock: 30 G

Interface:Ethernet, USB Port

    The 1756-CN2R/C ControlLogix ControlNet Redundant Bridge Module is engineered for critical industrial applications where reliability and robustness are paramount. This advanced module offers unparalleled performance and redundancy, making it an ideal choice for mission-critical systems requiring high-speed data transfer.

    With its dual-channel design, the module ensures continuous operation by automatically switching to the active channel in the event of a failure, guaranteeing uninterrupted data flow and operational efficiency.

    Featuring an open-type enclosure, this module allows for easy integration into various industrial environments without compromising on space or access to its critical components. The modular design facilitates quick installation and maintenance.

    Designed to withstand harsh environmental conditions, the 1756-CN2R/C is rated for a wide temperature range from 0°C to 60°C, ensuring reliable performance across diverse industrial settings. It also meets stringent vibration and shock standards, making it suitable for use in dynamic and challenging environments.

    Equipped with state-of-the-art RF interference suppression technology, the module ensures stable communication even in the presence of electromagnetic noise, safeguarding the integrity of data transmission. Its robust construction and efficient power management contribute to a longer operational lifespan, reducing maintenance requirements and downtime.

    Optimized for ControlLogix systems, this module seamlessly integrates with existing infrastructure, leveraging the full capabilities of ControlLogix automation platforms. Its compatibility with ControlNet protocols enhances system interoperability, facilitating smoother data exchange between devices.
