Number of Channels:16
Common Mode Voltage Range:-20 to 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (max)
Input Range:-20 to 20 mA
Absolute Input Current:-30 to 30 mA (max)
Overvoltage Protection:7.5 VAC RMS
Input Range (DC):-10 to 10 VDC – 1 LSB
Current Rating:Backplane: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Power Rating:Backplane: 2.425 W
Enclosure Type:Open Type

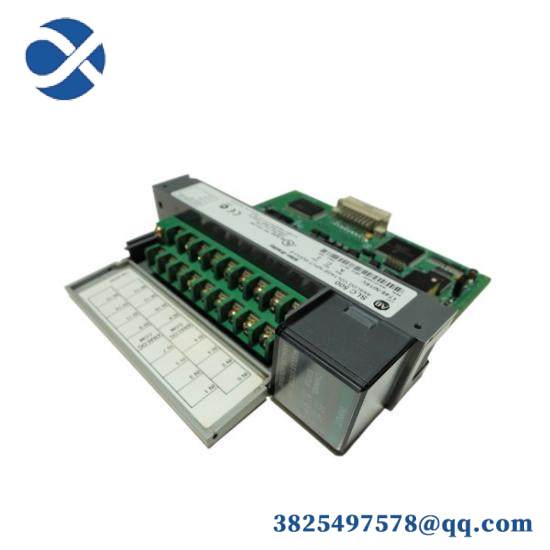

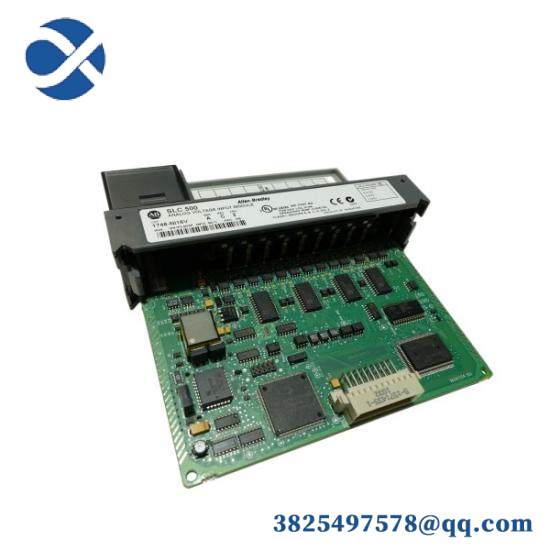

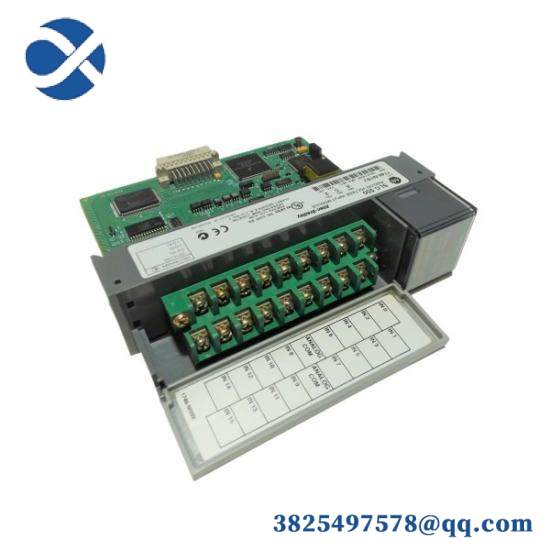

Module Type:High Resolution Analog Input Module
The Allen Bradley 1746-NI16V module is engineered to enhance the precision of industrial automation systems by providing unparalleled accuracy in analog input measurements. With 16 channels capable of handling both common mode voltage ranges and input currents, this module ensures reliable operation under diverse environmental conditions.
Each channel supports a wide input range from -20 to +20 volts, ensuring compatibility with a broad spectrum of sensors and devices. The high resolution feature allows for detailed monitoring, making it ideal for applications requiring fine-grained data analysis.
Featuring robust isolation and overvoltage protection, the 1746-NI16V is designed to withstand harsh industrial environments without compromising performance. Its open-type enclosure facilitates easy installation and maintenance, contributing to its longevity and reliability.
Compliant with international safety standards, this module is compatible with various communication protocols, enabling seamless integration into existing control networks. Its versatile application across different industries, from manufacturing to process control, underscores its value in optimizing operational efficiency.
With the Allen Bradley 1746-NI16V, engineers and technicians can rely on a high-performance solution that streamlines data acquisition and processing, leading to enhanced productivity and cost-effectiveness in industrial settings.
