Model Type:ControlNet Bridge Module
Manufacturer(s):Allen-Bradley
Operating System:Windows
Communication Protocol:Ethernet/IP Bridge
Enclosure Type:Open Type
Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface Type:Ethernet
USB Port:Not Included

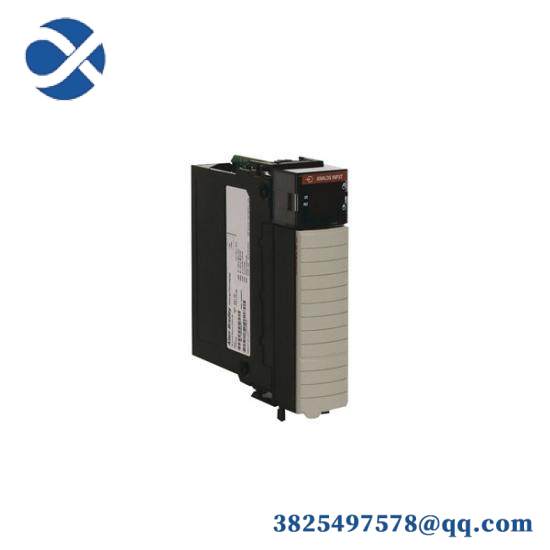

The Allen-Bradley 1756-MVI Interface Module is engineered to enhance the performance of ControlLogix automation systems by enabling efficient communication over ControlNet networks. This module supports network segmentation, ensuring secure and reliable data exchange in industrial environments.
Featuring backward compatibility, it seamlessly integrates with previous versions of MVI56-MNETCR, providing an upgrade path for existing systems. The module operates at a speed of 10/100 Mbps, supporting both auto crossover detection and Ethernet configuration.
With support for up to 5000 16-bit registers in user-definable module data memory, the 1756-MVI facilitates efficient data management and processing within the system. The inclusion of ProSoft Configuration Builder (PCB) software enables simplified configuration and customization through a Windows-based graphical user interface.
For data transfer between the module and processor, this interface employs ladder logic and Add-On Instructions (AOI), streamlining the process and ensuring seamless integration. The open-type enclosure design ensures robust performance under various environmental conditions, making it suitable for industrial applications.
Equipped with an internal web interface, the module allows users to monitor and manage network settings remotely, enhancing operational efficiency and maintenance capabilities. Its compatibility with 802.3 compliant cables ensures easy integration with existing infrastructure, while its robust vibration and shock resistance guarantees reliability in harsh industrial settings.
