Brand:Allen-Bradley
Model:2094-AM01
Family:Kinetix 6000 Drive
Ports:[“SERCOS Receive”,”SERCOS Transmit”,”Motor Resistive Brake”,”Auxiliary Feedback”,”Motor Feedback”,”I/O Connector”]
Mounting:Top or Front
Operating Temperature:0…50 °C (32…122 °F)
Humidity Range:5…95% noncondensing
Vibration Rating:5…55 Hz @ 0.35 mm (0.014 in.) double amplitude
Control Module Altitude:Similar to other Kinetix modules (1000 m / 3281 ft, 3000 m / 9843 ft with derating)

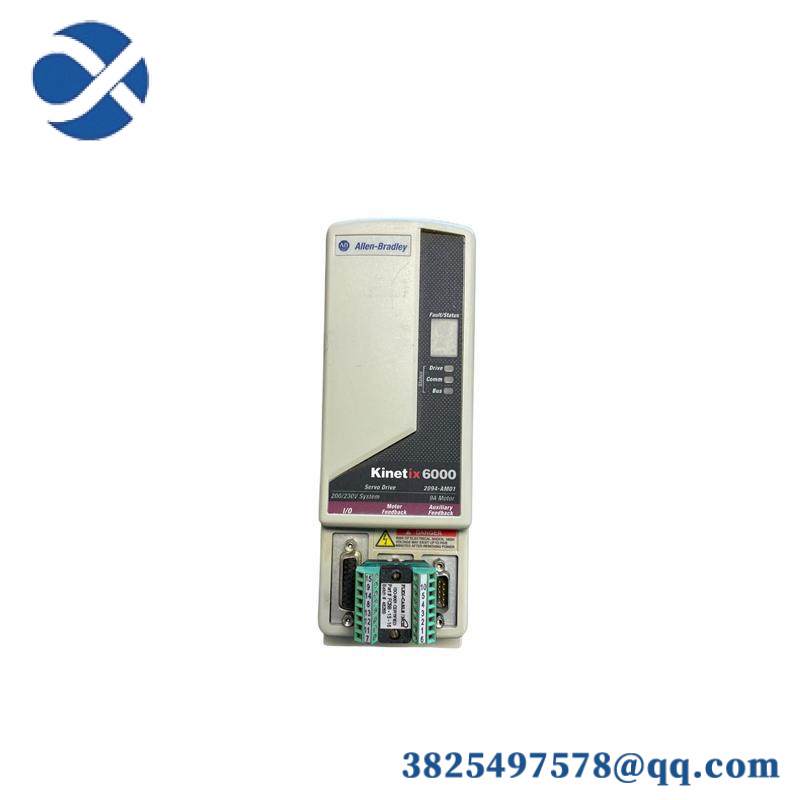

The Allen-Bradley AB 2094-AM01 AXIS MODULE is specifically engineered for use with the Kinetix 6000 series drives, offering unparalleled performance in motion control systems. This module is equipped with multiple ports that facilitate its integration into various drive configurations, including SERCOS receive and transmit connectors, motor resistive brake connectors, auxiliary feedback, and motor feedback connections.
With its compact design, the AB 2094-AM01 ensures efficient space utilization in industrial setups. The module supports a wide range of temperatures, making it suitable for diverse operational environments. Its robust construction withstands varying humidity levels without degradation, ensuring reliability in challenging conditions.
Featuring a maximum altitude rating up to 1000 meters, the AB 2094-AM01 can be deployed in elevated locations with minimal performance compromise. Additionally, it is rated for vibration resistance up to 55 Hz, ensuring stable operation even under dynamic conditions.
The AB 2094-AM01 weighs approximately 5.1 pounds (2.31 kg), making it lightweight yet sturdy. This design choice facilitates easy installation and handling, enhancing overall productivity and efficiency.
For optimal performance and compatibility, we recommend pairing the AB 2094-AM01 with the Integrated Axis Module (IAM) and Axis Module (AM) from the same series. This configuration optimizes system response time and reduces setup complexity, delivering precise control over motion systems.
