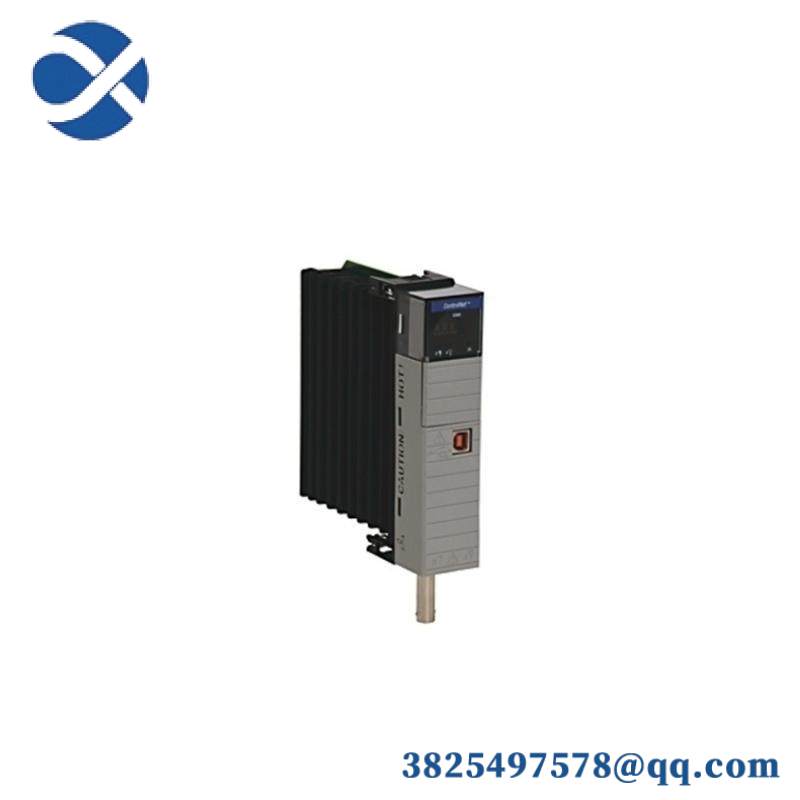

Allen-Bradley AB 1756-CN2R/B ControlNet Redundant Bridge Module

Model Type:ControlNet Redundant Bridge Module

Manufacturer:Allen-Bradley

Module Number:1756-CN2R/B

Network Compatibility:ControlNet

Redundancy:2-way Redundant

Input Capacity:Multiple configurable inputs

Operating Temperature Range:-40°C to +70°C

Power Consumption:≤ 1.5 W

Dimensions:89.5 mm x 68.8 mm x 34.9 mm

Mounting:Panel Mount

Enclosure:IP20

Communication Interface:RS-485/422

Data Rate:Up to 1 Mbps

Protocol Support:ControlNet, Ethernet/IP, Modbus/TCP

    The AB 1756-CN2R/B ControlNet Redundant Bridge Module is engineered to provide unparalleled network reliability for industrial automation applications. It offers dual connections for ControlNet networks, ensuring that operations remain uninterrupted even under network failures.

    Featuring an IP20 enclosure, this module is designed for robust performance in various industrial environments, from manufacturing floors to assembly lines, guaranteeing long-term reliability without compromising on functionality.

    Utilizing advanced communication protocols, including ControlNet and CIP, the module seamlessly integrates with Allen-Bradley’s ControlLogix Controllers, allowing for enhanced data exchange and efficient control over machinery and processes.

    With its ability to handle up to 10 Mbps communication rates, the AB 1756-CN2R/B ensures fast and reliable data transfer, crucial for real-time monitoring and control in complex industrial settings.

    This module is built to withstand wide temperature ranges (-20°C to 70°C) and operates in non-condensing environments, ensuring stable performance throughout the year, regardless of the operational conditions.
