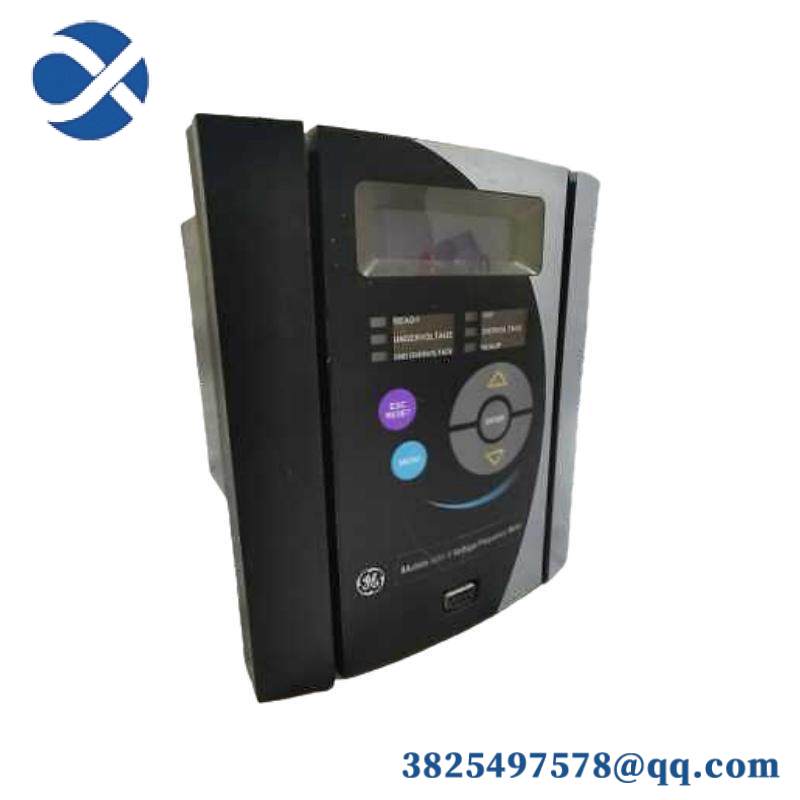

GE 369-HI-R-M-F-E-H-E – Enhanced Motor Management Relay

Control Power Range:50-300 VDC / 40-265 VAC

Digital/Switch Inputs:6 optically isolated

Recordable Events:512

Fuse Rating:3.15 A H 250 V

Ground Current Input Frequency:20 to 100 Hz

Maximum Altitude:2000 m (max)

Metering Package:Optional

Fiber Optic Port:Optional

RTD Inputs:12 (3-wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, 10 Ω copper)

Phase Current Inputs:1 A and 5 A secondary

Dimensions:approx. 29.6cm H x 10.7cm W x 20.5cm L

Weight:approx. 10 lbs

Insulation Class:I

Enhanced Diagnostics:Yes

Harsh Chemical Environment Option:Available

    The GE 369-HI-R-M-F-E-H-E is a highly versatile motor management relay designed for demanding industrial environments.

     Equipped with advanced diagnostic tools, this relay provides unparalleled monitoring and protection for motors and their associated systems.

     Its robust design includes multiple input options, allowing it to adapt to a wide range of applications.

     With the ability to handle up to 100 to 240 VAC at 50/60 Hz, this relay offers reliable performance under varying conditions.

     The inclusion of optional features such as 12 RTD inputs, a metering package, and a fiber optic port enhances its functionality and flexibility.

     Designed for harsh environments, this relay is ideal for industries requiring precise motor management and continuous operation.
