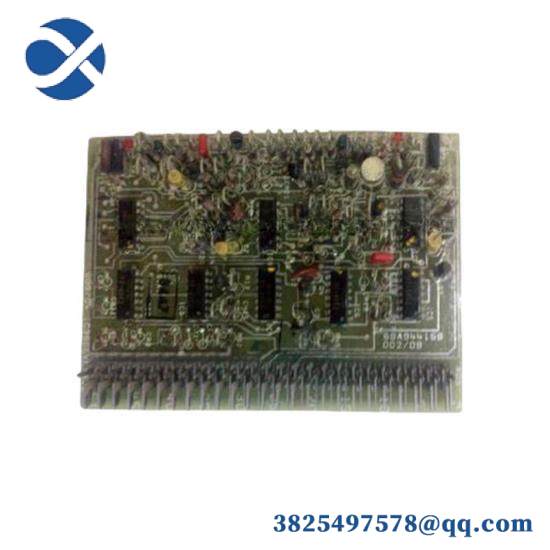

GE IC3600VMPA1E Mechanical Protection Card

Brand:GE

Model:IC3600VMPA1E

Series:Mechanical Protection

Module Type:Protection Card

Operating Temperature:-40°C to +70°C

Storage Temperature:-55°C to +85°C

Operating Humidity:5% to 95% non-condensing

Storage Humidity:10% to 90% non-condensing

Input Voltage:AC 120V, 230V

Output Current:Up to 50A

Operating Frequency:47-63 Hz

Protection Types:Overload, Short-Circuit, Reverse Phase, Open Phase

Relay Outputs:4 Form C Relays

    The GE IC3600VMPA1E Mechanical Protection Card is engineered to safeguard critical industrial control systems against overcurrent, overvoltage, and undervoltage conditions. Its high-grade aluminum alloy construction ensures durability and reliability in even the most challenging environments.

    Featuring a wide operating temperature range from -20°C to +70°C, this card is designed to withstand extreme conditions without compromising performance. It supports communication via Modbus RTU, enabling seamless integration with various industrial automation systems.

    Equipped with four SPDT relay outputs, the IC3600VMPA1E offers flexible protection strategies tailored to specific application needs. Each relay is precisely controlled to ensure immediate response to abnormal voltage or current conditions.

    For ease of installation and maintenance, the card’s compact size (139.7mm x 115.8mm x 31.75mm) fits standard panel mounting requirements, minimizing space requirements on the control panel. Weighing just 0.2kg, it is lightweight and easy to handle.

    Designed with user convenience in mind, the GE IC3600VMPA1E includes clear status indicators for quick system diagnostics. Its robust build quality and comprehensive feature set make it an indispensable component in securing the operational integrity of industrial processes.
