Manufacturer:General Electric (GE)
Model Number:IS200EGPAG1BCA
Series:EX2100 Excitation Control
Type:Gate Pulse Amplifier Module
Weight:1 lbs 9 oz
Dimensions:Not specified in the provided documents
Functionality:Controls power bridge circuits and SCRs, monitors air flow and temperature
On-board Components:Green and Red LED indicators
Additional Features:Configurable hardware with 5 on-board jumpers

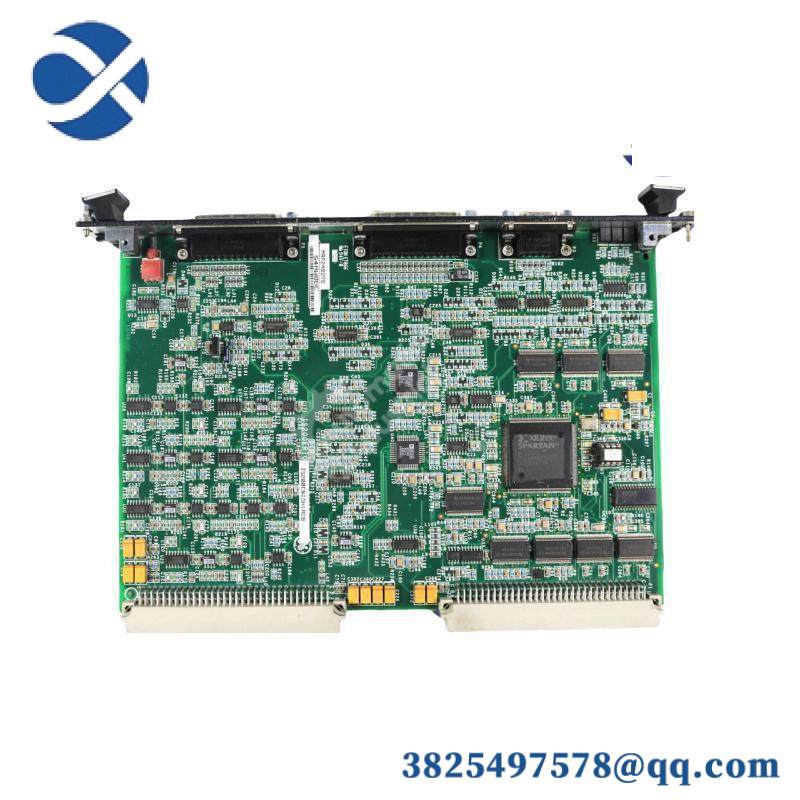

The General Electric IS200EGPAG1BCA Gate Pulse Amplifier Board is meticulously engineered to enhance the efficiency and reliability of excitation control systems. This board acts as a pivotal interface between the control system and the power bridge, ensuring precise regulation of Silicon Controlled Rectifiers (SCRs) which are fundamental to the operation of these systems.
Equipped with on-board green and red LED indicators, this board provides real-time status updates, allowing for immediate troubleshooting and maintenance. The compact design ensures it can be seamlessly integrated into existing systems without requiring extensive modifications or space adjustments.
This board is designed to operate in harsh industrial environments, providing robust performance under varying conditions. It is compatible with the GE EX2100 Excitation Control Systems, making it an essential component for upgrading or replacing older models.
The IS200EGPAG1BCA is designed with durability and ease-of-use in mind. Its compact form factor and intuitive design make installation straightforward, even for technicians without specialized training. Additionally, the inclusion of LED indicators simplifies the identification of operational status, reducing downtime and improving system availability.
With a weight of just 0.14 kg and dimensions of 11 x 6 x 6.7 cm, this board is ideal for installations where space and weight are critical considerations. Whether you’re upgrading an existing system or building a new one from scratch, the IS200EGPAG1BCA is a reliable and efficient solution.
