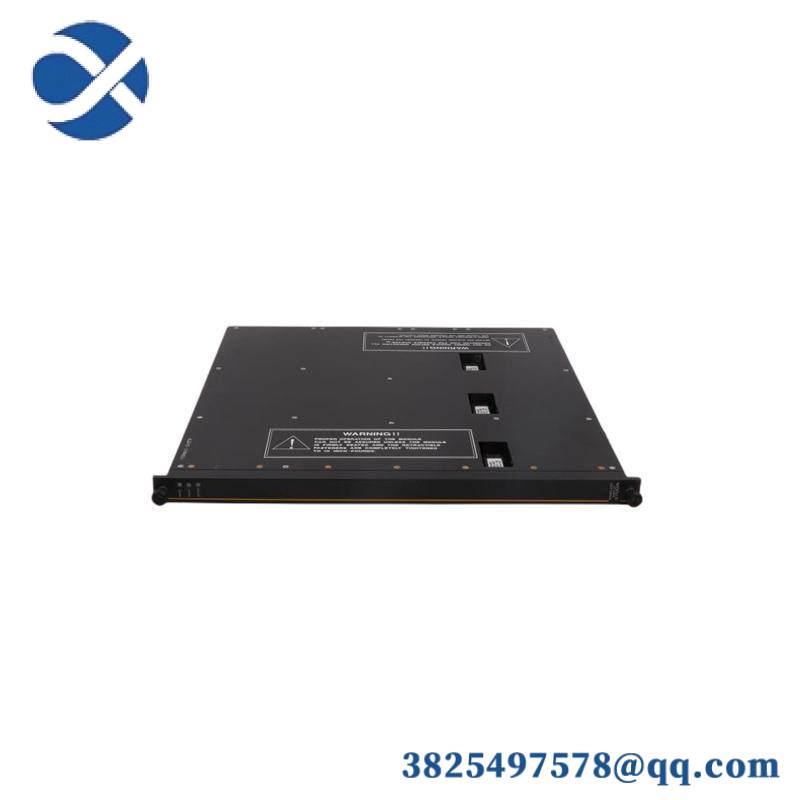

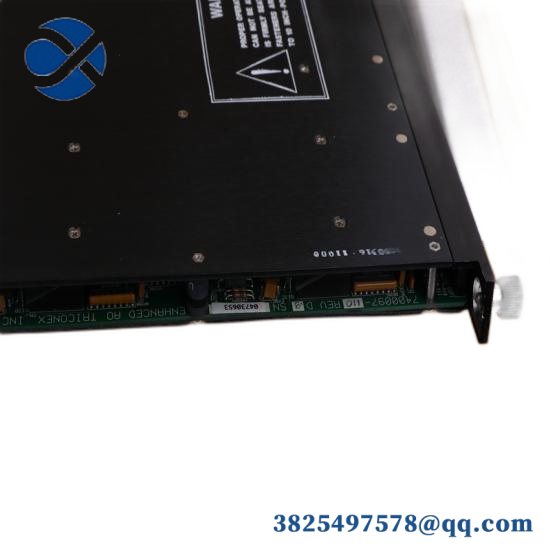

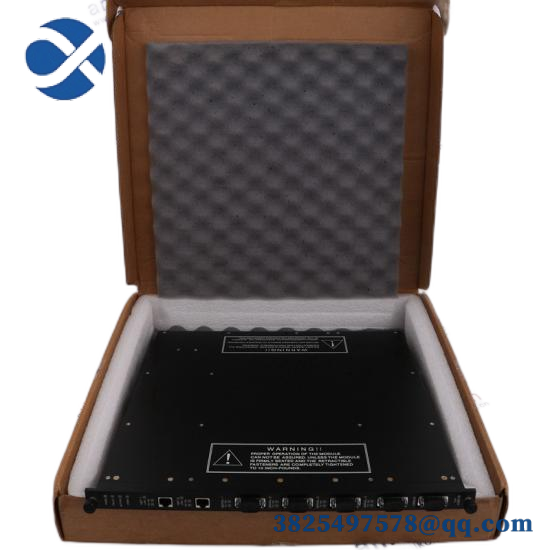

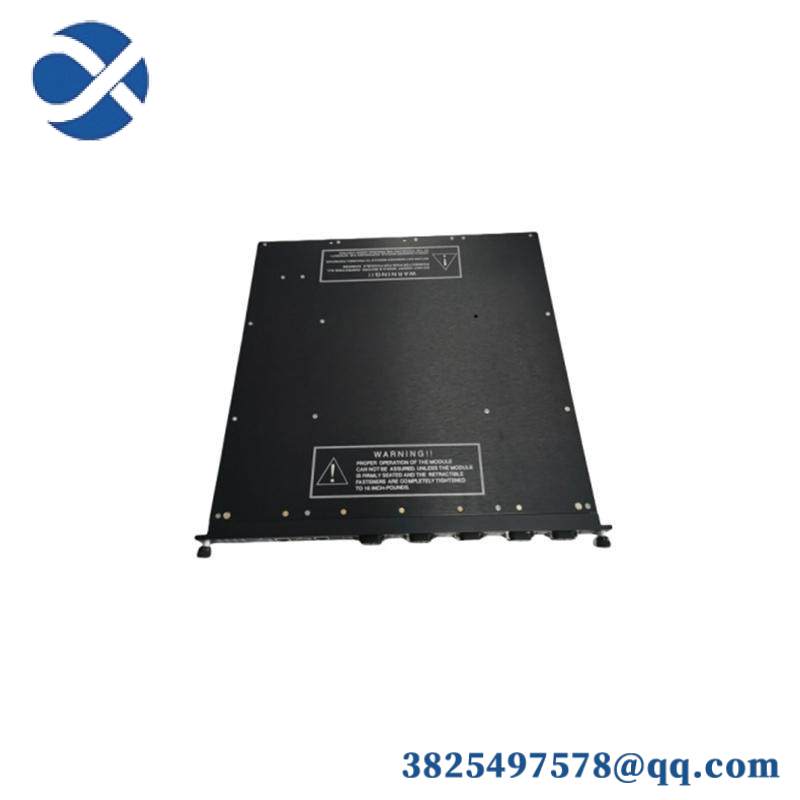

Model Type:Analog I/O Module
Model Number:Triconex 3700a
Manufacturer:Triconex
Voltage:0-5V, + 6%
Type:TMR, AI
No. of Input Points:32, diff, DC coupled
Isolated Points:No
Input Update Rate:55 ms
Resolution:12 bits
Accuracy:< 0.15% of FSR, from 0° to 60°C
Input Resistance (load):30 MΩ (DC), min.
Power-Off Resistance:30 KΩ (DC), typical
Common Mode Rejection:-80 dB (DC-100Hz), typical
Common Mode Range:-12V to +12V peak
Leg-to-Leg Isolation:200 KΩ, typical
Normal Mode Rejection @ 8Hz:-3 dB
Normal Mode Rejection @ 60Hz:-17 dB
Normal Mode Rejection @ 120Hz:-23 dB
The TRICONEX 3700A Analog I/O Module is meticulously designed for use in industrial automation systems where reliability and precision are paramount. It supports a wide range of input voltages, ensuring seamless integration with various industrial control systems.
With a resolution of 12 bits and an accuracy of less than 0.15% of full-scale range, this module delivers outstanding performance in temperature ranges from 0°C to 60°C, making it ideal for harsh environments.
Its triple modular redundancy (TMR) design provides a robust solution for safety-critical applications, minimizing downtime and enhancing system reliability. The module supports differential inputs, ensuring precise and stable signal processing.
Designed with a focus on ease of use, the TRICONEX 3700A Analog I/O Module is easy to install and maintain, reducing the overall cost of ownership. Its compact form factor allows for efficient space utilization within control cabinets.
Certified and compliant with international standards, the TRICONEX 3700A Analog I/O Module is a trusted choice for engineers and operators looking for dependable and accurate analog data acquisition.
