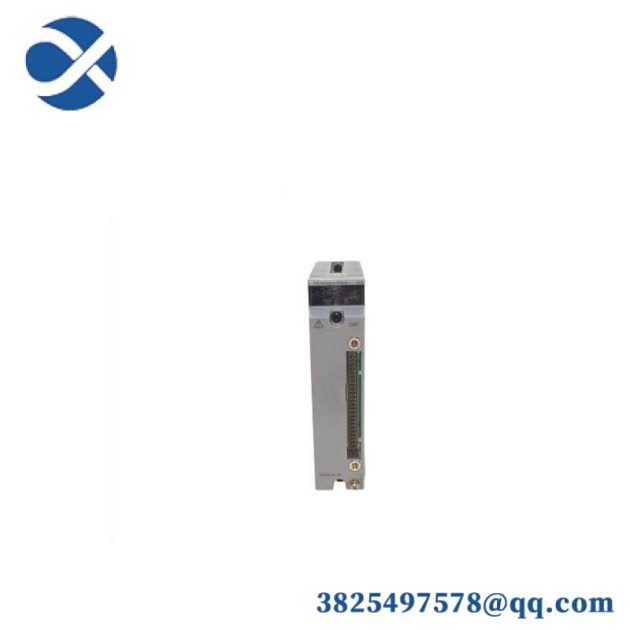

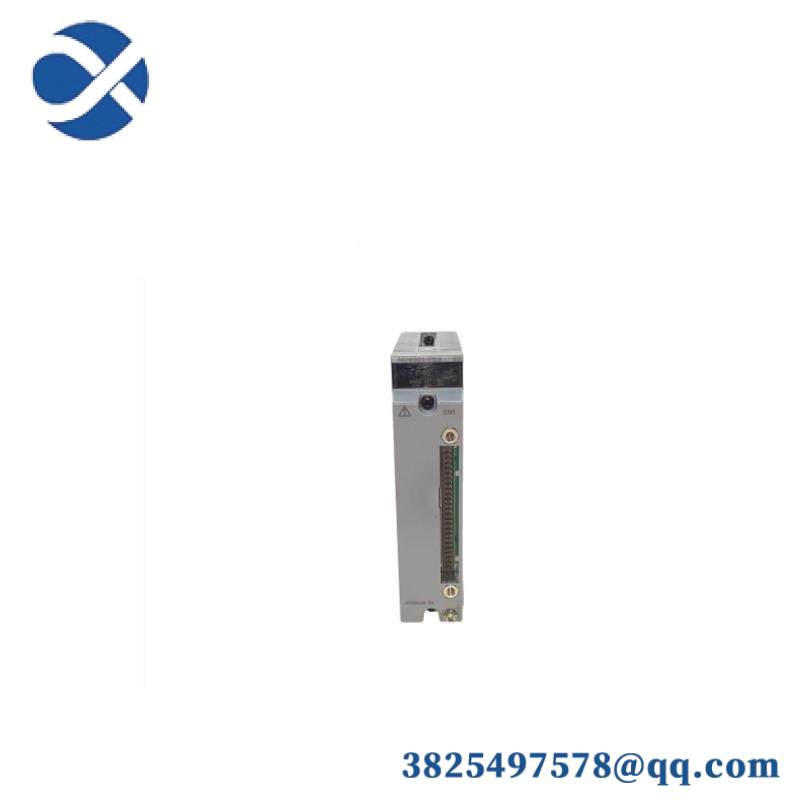

Yokogawa ATD5A-00 Digital Output Module for Precision Control Applications

Operating Temperature Range:-20°C to +85°C

Supply Voltage Range:12V DC to 30V DC

Output Current Range:0mA to 20mA

Output Load Capacity:Max. 500Ω (Load Resistance)

Relay Contact Rating:2A @ 24V DC

Communication Interface:RS-485 Modbus-RTU

Power Consumption:Max. 2W

    The Yokogawa ATD5A-00 Digital Output Module stands out for its high-precision digital signal outputs, essential for maintaining optimal system performance in industrial control environments.

    Equipped with a robust power supply voltage of 24VDC, this module ensures stable operation across various applications, from automation systems to process control processes.

    Featuring an adjustable current range from 4-20mA and a versatile voltage range from 0-10VDC, the ATD5A-00 offers unparalleled flexibility in configuring output signals to meet diverse needs.

    Operated within an extensive temperature range from -20°C to +70°C, it guarantees reliable performance even under extreme conditions, making it suitable for use in challenging industrial settings.

    The inclusion of two SPST relays enhances the module’s functionality, allowing for efficient switching and control operations. Furthermore, the RS-485 communication interface facilitates seamless integration with existing systems.

    Designed with IP65 protection class, the ATD5A-00 ensures durability against dust and water ingress, ensuring long-lasting performance in harsh environments. Its compact dimensions of 125mm x 72mm x 102mm make it easy to install in space-constrained areas.
